AUDI RS3 8Y 2.5 TFSI [ECU] [22-24]

AFTER PURCHASE WE WILL CONTACT YOU AND ASK YOUR PREFERRED ECU UNLOCK METHOD

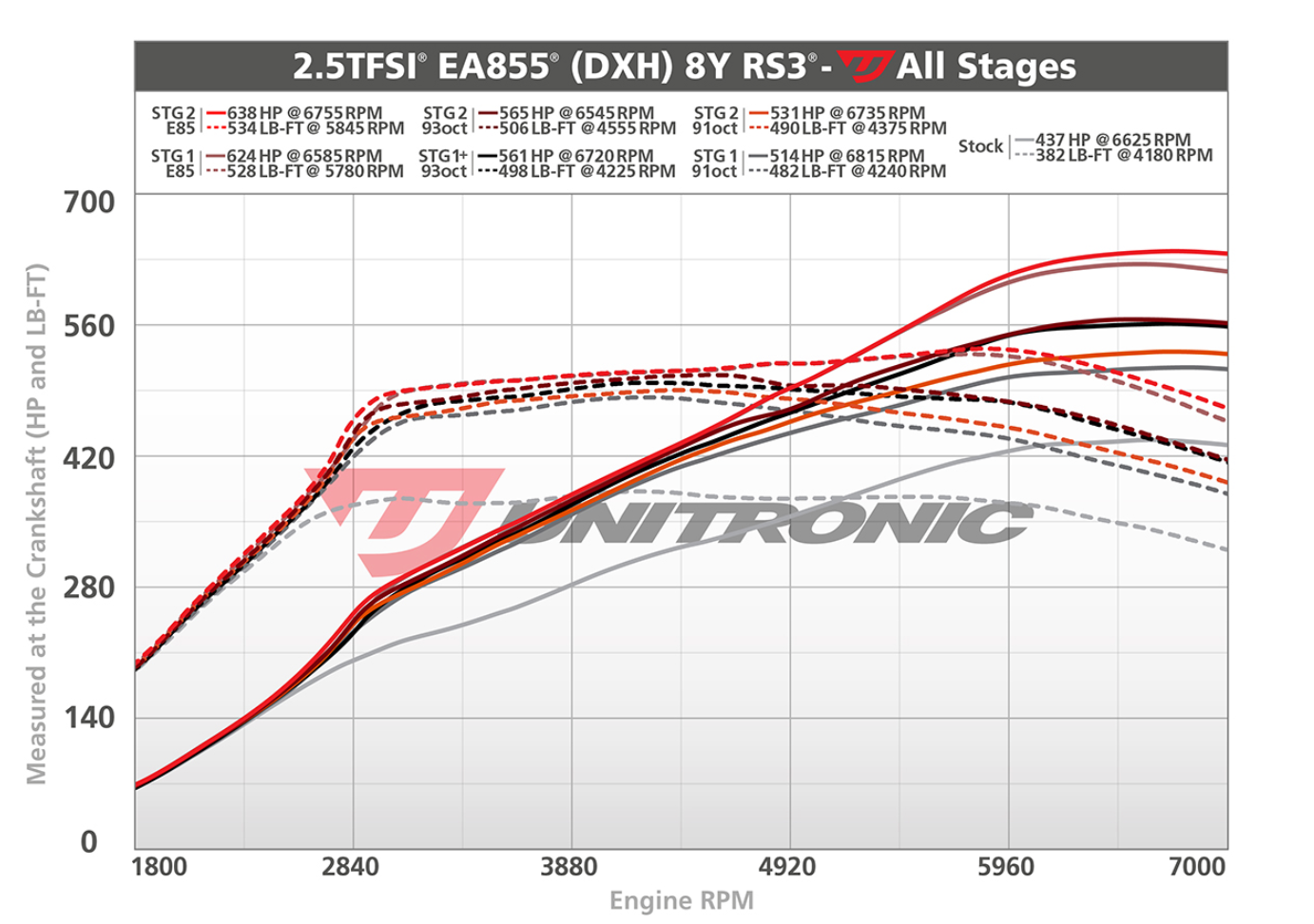

Unitronic® Performance ECU Software will soon be available for the 8Y (2022-2024) Audi® RS3® equipped with the 2.5TFSI® EVO DXH engines in North America (NAR) with UniFLEX (Flex Fuel) and all-new Unitronic Advanced Features (UAF) Add-Ons. With testing and validations completed, power output on the North American (NAR) 8Y RS3 is increased by up to +201HP / +152LB-FT with Unitronic Stage 2 E85 Performance Software for a maximum of 638HP / 534LB-FT**.
Once the ECU is unlocked, users can tune their vehicles directly through the OBD-2 port within minutes, from the comfort of their own home or garage with UniCONNECT+. Support for (2022-2024) RS3 and Cupra® Formentor® VZ5® DNWx engines found in the Rest-of-World (RoW) markets are coming soon!

The 8Y RS3 was one of the first platforms to arrive equipped with the new Bosch® H80 MG1CS163 ECU hardware, which is a highly sophisticated controller, that introduced new challenges in not only finding a solution to gain access to reflash the new ECU hardware, but also get oriented with the new strategies found in this new MG1CS163 ECU type, while simultaneously introducing new innovation features and solutions.

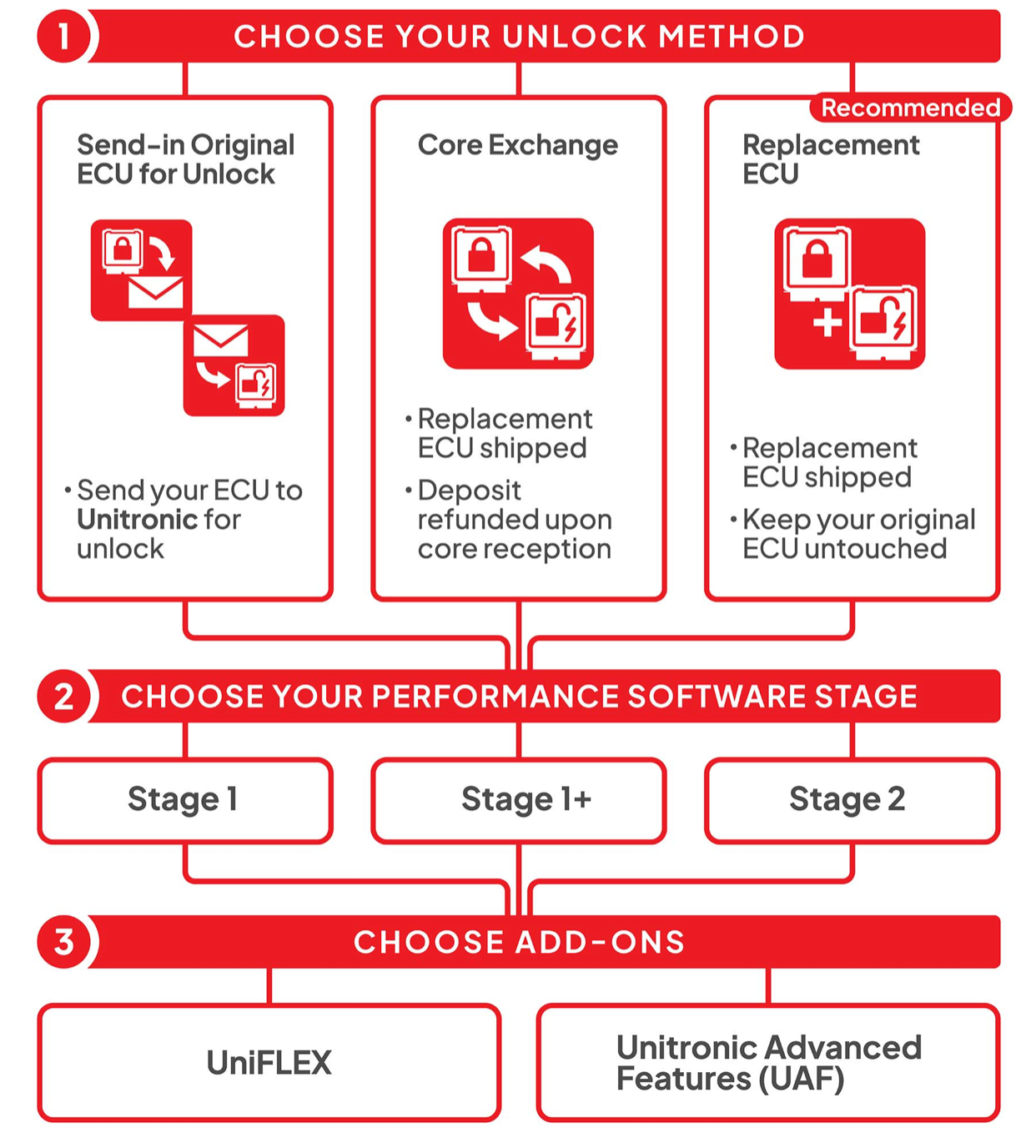

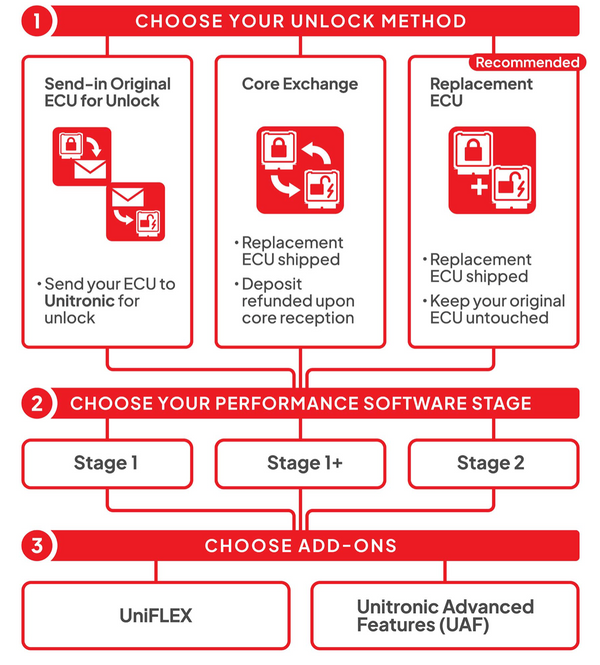

Unitronic Software Engineers quickly developed an ECU unlock solution, but due to the unique nature of these new H80 MG1 ECUs, Unitronic requires ECUs to be sent to its Headquartersfor unlock operations to be performed. With over 20 years of experience in this market, it was evident that some customers would not want any downtime associated with the ECU unlocks, so Unitronic is happy to offer three options regarding the ECU Unlock, in efforts to offer a variety that will suit everyone's preferences.

UNIFLEX:
Unitronic is proud to be the first to implement native, true, flex fuel code to the factory Bosch MG1CS163 ECU called UniFLEX. Unitronic’s UniFLEX Hardware allows for a plug and play installation through its proprietary UniFLEX Module and a genuine Continental Ethanol Sensor with required fittings and harnesses.

NOTE: The 8Y RS3 uses Unitronic’s UH012-FLA or UH013-FLAUniFLEX hardware kits.

When combined with Unitronic’s UniFLEX-enabled Performance Software Add-On, the factory Bosch MG1CS163 ECU receives ethanol content over the CAN-bus and utilizes this fuel composition data to blend mapping of timing, boost pressure, fueling, and much more completely on-the-fly. This allows for seamless transitions from 100% gasoline to 85% ethanol and anywhere in between, without needing an ECU reflash.

UniFLEX is also Bluetooth® enabled, allowing for wireless connectivity with iOS and Android mobile devices using the Unitronic UniE85 Manager App.

UNITRONIC ADVANCED FEATURES (UAF):

Adding even more to the magnitude of this project, Unitronic is proud to introduce its Advanced Features. Thanks to the proprietary ECU code, the Unitronic Advanced Features (UAF) Add-On gives unparalleled levels of control for true adjustability directly from the driver’s seat.

Exhaust Overrun (Pops and Bangs)

Adjustable Drive Mode based PnB (Enabled in Dynamic & Performance modes)
3 levels of duration (Off, Short, Long)
3 levels of intensity (Low, Medium, High)

Adjustable Launch Control

8 Adjustable RPM Setpoints (4000-5400)
3 adjustable boost levels (Low, Medium, High)

Rolling Launch Control

User adjustable RPM setpoint
3 adjustable boost levels (Low, Medium, High)

AVAILABLE HARDWARE

Unitronic’s high-performance hardware for the 8Y RS3 is engineered to deliver maximum power and efficiency in a direct, bolt-on package.

From our tried-and-true 4” Carbon Fiber Intake to our Performance Downpipe equipped with a GESi 5” G-Sport Ultra High Output UHO+ 400cpsi Catalytic Converter and even our upcoming 4" Turbo Inlet Elbow made specifically for the 8Y RS3, each component is engineered for seamless installation and real-world performance gains. Our popular Intercooler Upgrade keeps intake air temps in check for both factory and hybrid turbochargers while our Dogbone Mounts help improve traction while eliminating drivetrain slop.

Whether you're chasing lap times or enhancing your daily driver, Unitronic Performance Software and Hardware gives your 8Y RS3 the performance edge it deserves — and we're not done yet. Stage 3 offerings and more are still in the works!

APPLICATIONS
2022-2024 Audi® RS 3® 2.5TFSI® EVO DXH
