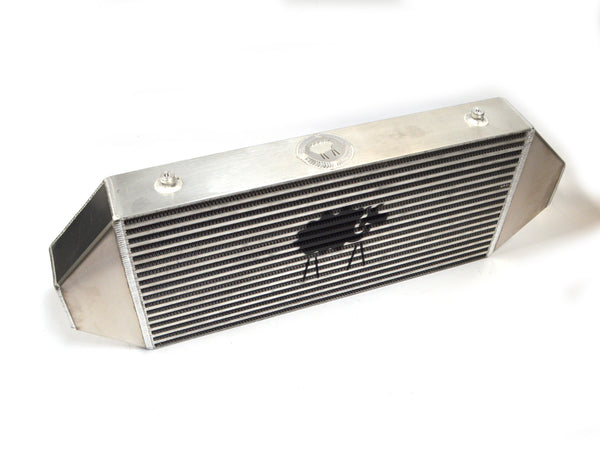

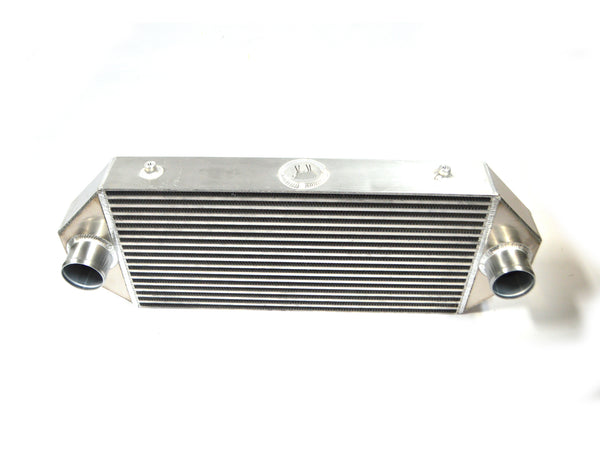

SHEEPEYRACE 800-1200HP DUAL BACK DOOR INTERCOOLER
SPECS
3" CORE
- DIMENSIONS TANK TO TANK: 30” X 12” X 3”
- 24” X 12” X 3” CORE SIZE
3.5" CORE
- DIMENSIONS TANK TO TANK: 31” X 12” X 3.5”
- 25” X 12” X 3.5” CORE SIZE
4" CORE
- DIMENSIONS TANK TO TANK: 31” X 12” X 4.5”
- 25” X 12” X 4.5” CORE SIZE
FEATURES & HIGHLIGHTS
- EXCLUSIVE HIGH DENSITY BAR & PLATE CORE
- TWO M8 X 1.25 MOUNTING BUNGS ON TOP OF CORE
- AIR-TO-AIR INTERCOOLER
- MADE IN THE USA
CONSTRUCTION ALL SHEEPEY BUILT INTERCOOLERS ARE HAND CONSTRUCTED IN SOUTHERN CALIFORNIA BY FABRICATORS WITH DECADES OF EXPERIENCE. SHEEPEY BUILT USES EXCLUSIVE HIGH DENSITY INTERCOOLER CORES WITH CUSTOM END TANKS WELDED INSIDE AND OUT WITH .190 WALL ALUMINUM.
FITMENT REQUIREMENTS THIS INTERCOOLER WILL CLEAR ALL OEM STYLE FRONT ENDS WITH HEAVY TRIMMING TO THE BUMPER AND RADIATOR SUPPORT. BACK DOOR STYLE INTERCOOLERS WILL ALWAYS REQUIRE TRIMMING TO THE RADIATOR SUPPORT.
ALL INTERCOOLERS ARE MADE TO ORDER.
PLEASE REFER TO OUR LEAD TIMES.
