SKU:8221
Description
The engineers at CSF know cooling. So when it comes to keeping your transmission temps down as you push your BMW G8X M3/M4/M2 hard on the street or track, the CSF ZF8 Trans Cooler is the obvious choice. With an increase in cooling efficiency of around 30%, you can drive with confidence knowing you won't be damaging your expensive transmission due to overheating.
Features
- Dual-Core Design
- 194% Increase in Core & Tank Volume
- 94% Increase in Fluid Capacity Compared to OEM (CSF 1700ml vs. OEM 875ml)
- Two 22mm Stacked Cores = 44mm Core Thickness vs. OEM 28mm Core Thickness
- Rear Cooler: 16 Rows vs. OEM 14 Rows (191mm Overall Height vs. OEM 155mm)
- Front Cooler: Additional 16 Rows
- Made with CSF's AC Condenser Technology Using a 1-Row Super-High Pressure 16mm 9-Channel Microtube for Optimal Oil Flow and Maximum Surface Area Contact
- Utilizes OEM Top/Bottom Rubber Seals for Optimal Airflow
- OEM Style "Quick Connect" Inlet/Outlet Connections
- Drop-in Fit Requires No Modifications to Install

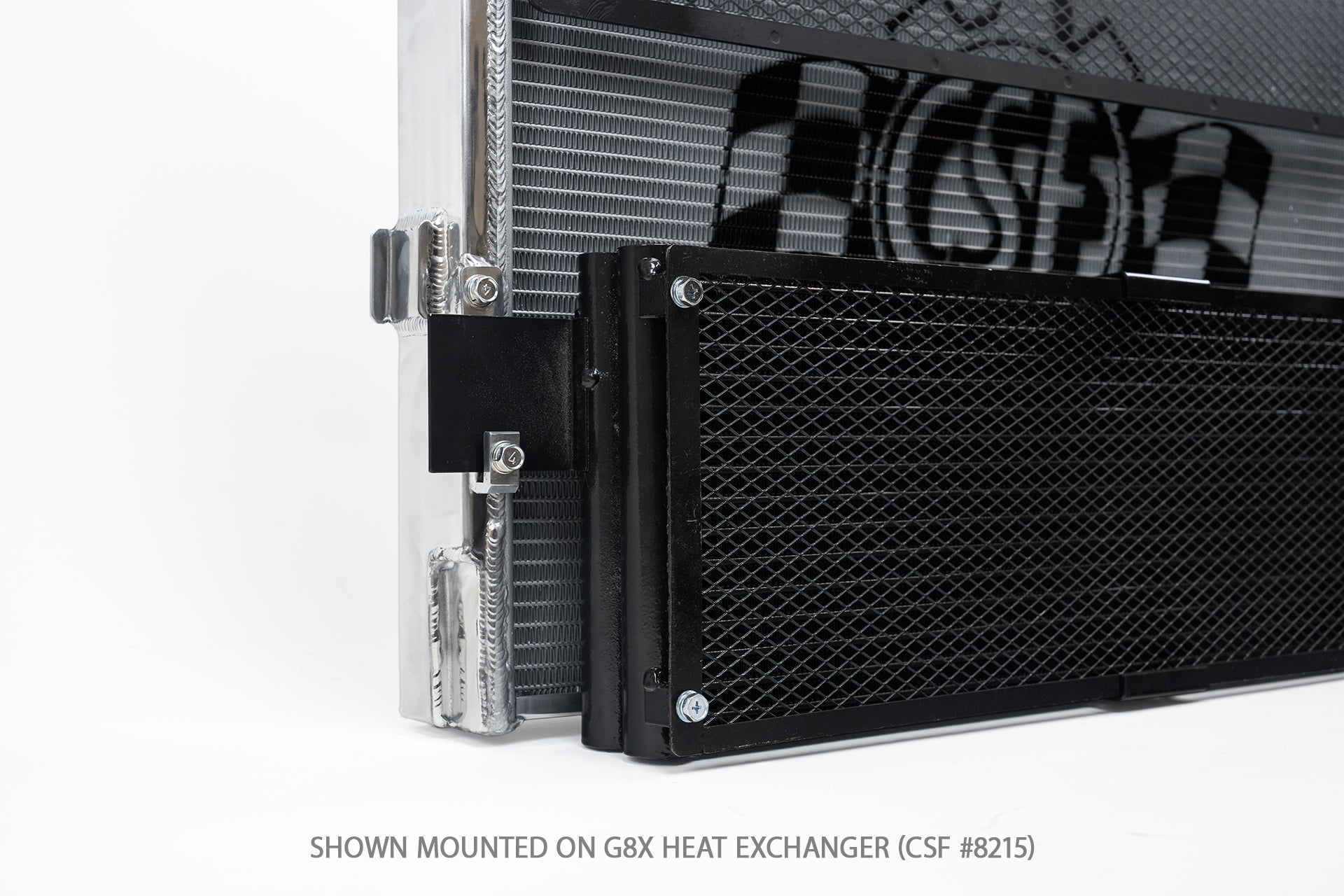

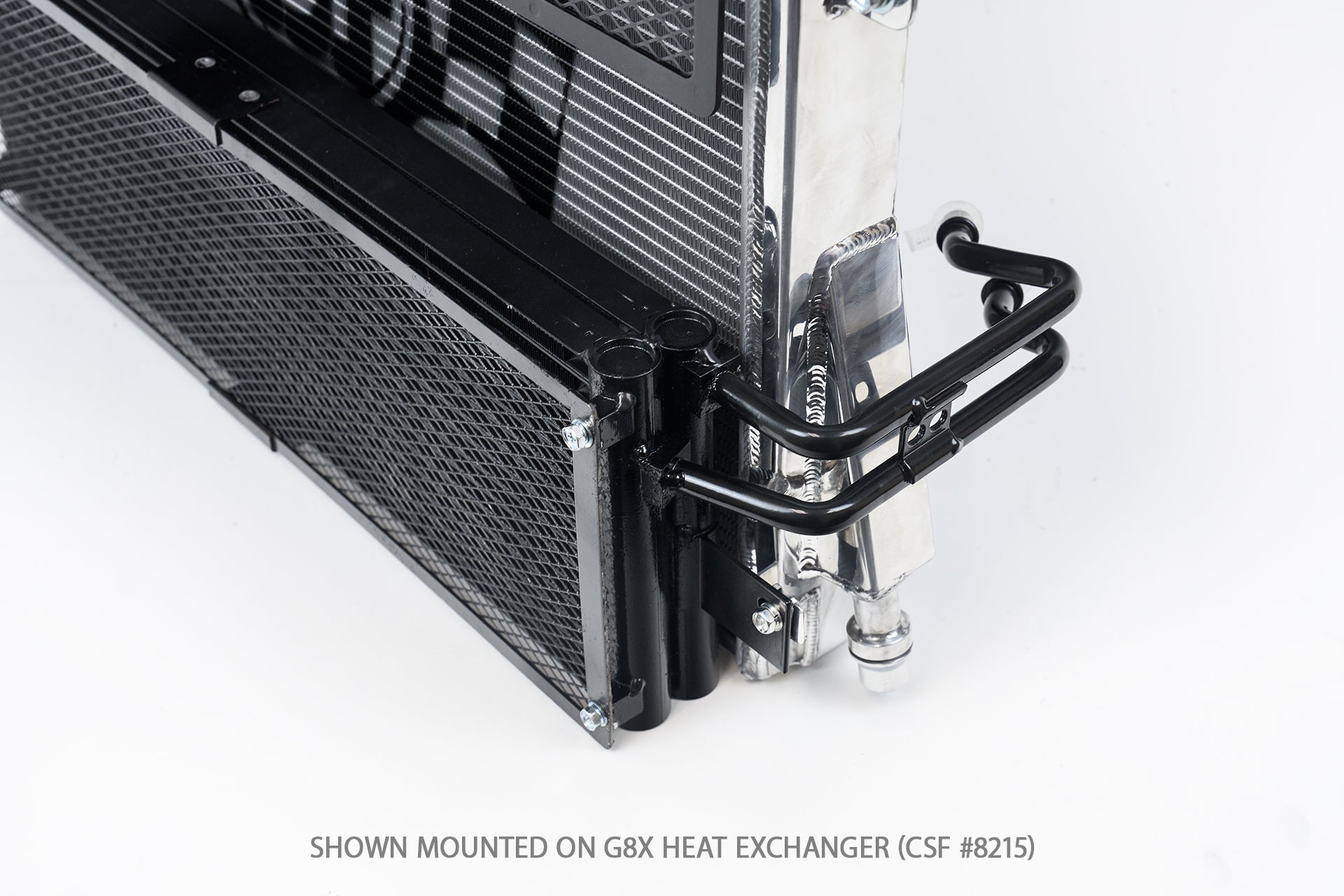

- Can be Installed With CSF's High-Performance Heat Exchanger (CSF #8215) or with the OEM Cooling System
- 2-Year Limited Warranty
- Ideal for Road Racing, Drag Racing, and Vehicles With Increased Performance and/or Transmission Tuning
Applications
| Year Range | Make | Chassis Code | Model | Trim | Engine / Trans / Etc | Notes |
|---|---|---|---|---|---|---|
| 2024-2025 | BMW | G87 | M2 | - | Turbocharged 3.0L L6 | - |
| 2021-2025 | BMW | G8X | M3 | - | Turbocharged 3.0L L6 | - |
| 2021-2025 | BMW | G8X | M3 | Competition | Turbocharged 3.0L L6 | - |
| 2021-2025 | BMW | G8X | M3 | Competition | Turbocharged 3.0L L6 (Automatic) | - |
| 2022-2025 | BMW | G8X | M3 | Competition xDrive | Turbocharged 3.0L L6 | - |
| 2022-2025 | BMW | G8X | M3 | Competition xDrive | Turbocharged 3.0L L6 (Automatic) | - |
| 2024-2025 | BMW | G8X | M3 | CS | Turbocharged 3.0L L6 | - |
| 2021-2025 | BMW | G8X | M3 | - | Turbocharged 3.0L L6 (Automatic) | - |
| 2021-2025 | BMW | G8X | M4 | - | Turbocharged 3.0L L6 | - |
| 2021-2025 | BMW | G8X | M4 | Competition | Turbocharged 3.0L L6 | - |
| 2021-2025 | BMW | G8X | M4 | Competition | Turbocharged 3.0L L6 (Automatic) | - |
| 2021-2025 | BMW | G8X | M4 | Competition xDrive | Turbocharged 3.0L L6 | - |
| 2021-2025 | BMW | G8X | M4 | Competition xDrive | Turbocharged 3.0L L6 (Automatic) | - |
| 2023-2025 | BMW | G8X | M4 | CSL | Turbocharged 3.0L L6 | - |
| 2023-2025 | BMW | G8X | M4 | CSL | Turbocharged 3L L6 | - |
| 2021-2025 | BMW | G8X | M4 | - | Turbocharged 3.0L L6 (Automatic) | - |
OEM Part Numbers
- BMW: 17 11 8 095 284
- BMW: 17-11-8-095-284
- BMW: 17118095284
Warranty
Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit the CSF Warranty Page
SKU# 8221 Warranty Term: 2 years
